Clear thermal detail
Q35 pairs a 384 × 288 sensor with a 35 mm lens. Q635 combines a 640 × 512 sensor with a 35 mm lens, while Q50 pairs the 640 × 512 sensor with a 50 mm lens. All three use f/1.0 optics.
Q35 / Q635 / Q50
Q35 pairs a 384 × 288 sensor with a 35 mm lens. Q635 combines a 640 × 512 sensor with a 35 mm lens, while Q50 pairs the 640 × 512 sensor with a 50 mm lens. All three use f/1.0 optics.

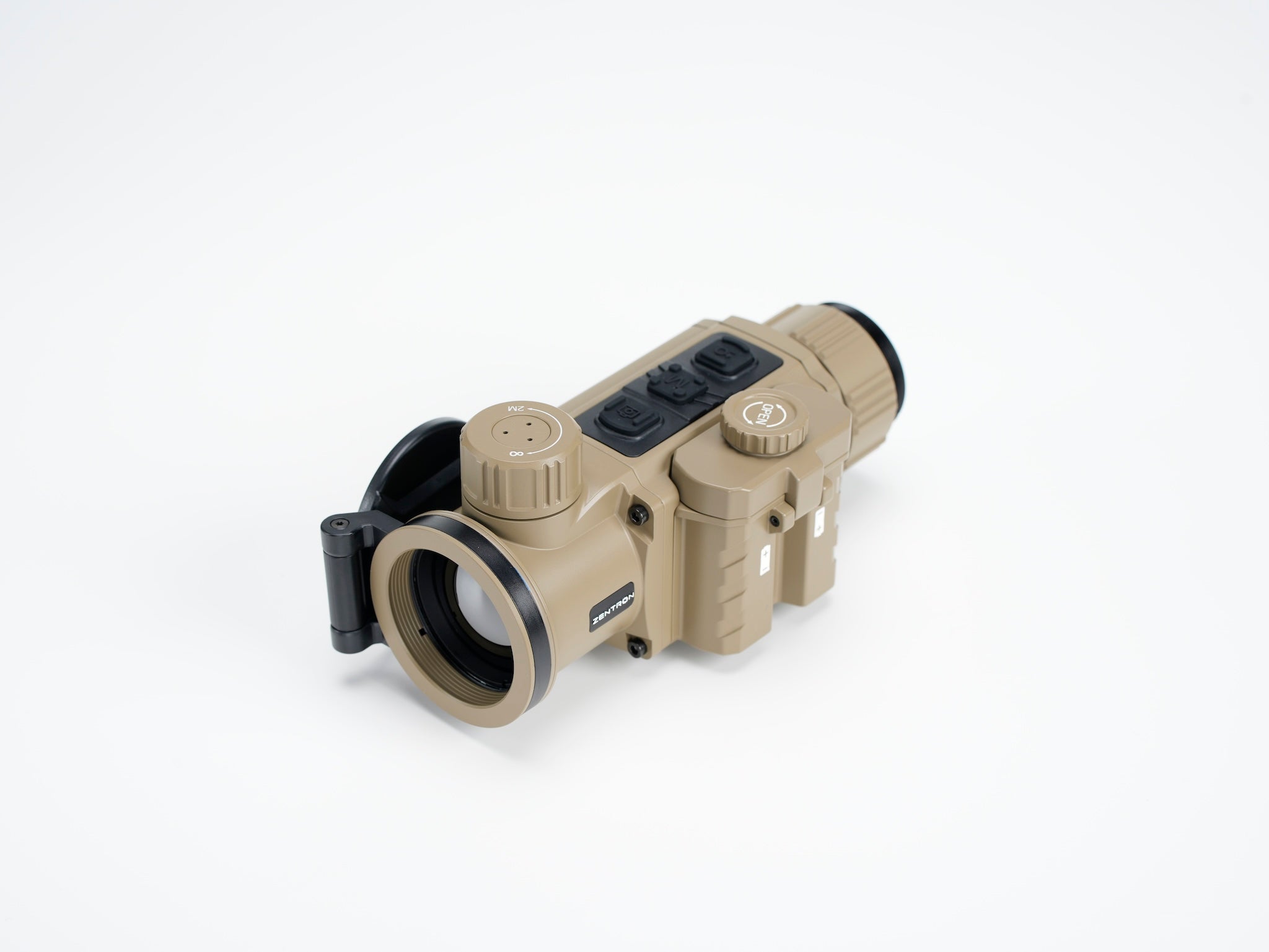

Use your Q Series device as a handheld scanner or with a compatible mount as a thermal scope. The compact magnesium-alloy housing suits both uses. Q50 shown.
Q35 / Q635 / Q50
FIELD FILM
A 30-second field film featuring Q Series scopes and M Series handhelds.
KEY SPECIFICATIONS
Compare every model below. All specifications stay visible as you choose a model.
Swipe or scroll to compare all models.
| Model | Q35 | Q635 | Q50 |
|---|---|---|---|
| Sensor & Imaging | |||
| Detector type | VOx uncooled | VOx uncooled | VOx uncooled |
| Resolution | 384 × 288 | 640 × 512 | 640 × 512 |
| Pixel pitch | 12 μm | 12 μm | 12 μm |
| Frame rate | 50 Hz | 50 Hz | 50 Hz |
| Spectral range | 8–14 μm | 8–14 μm | 8–14 μm |
| NETD | ≤20 mK | ≤20 mK | ≤20 mK |
| Optics | |||
| Objective lens | 35 mm f/1.0 | 35 mm f/1.0 | 50 mm f/1.0 |
| Field of view | 7.5° (H) × 5.6° (V) | 12.5° (H) × 10° (V) | 8.7° (H) × 7° (V) |
| Close focus | 5 yd | 5 yd | 5 yd |
| Detection range | 1,950 yd | 1,950 yd | 2,800 yd |
| Optical magnification | 2.3× | 1.6× | 2.3× |
| Display & Features | |||
| Display type | OLED | OLED | OLED |
| Display resolution | 800 × 600 | 1920 × 1080 | 1920 × 1080 |
| Digital zoom | 2.3–18.4× | 1.6–12.8× | 2.3–18.4× |
| Color palettes | Multiple thermal palettes | Multiple thermal palettes | Multiple thermal palettes |
| Reticle types | 8 | 8 | 8 |
| Reticle colors | 6 (5 colors + Auto) | 6 (5 colors + Auto) | 6 (5 colors + Auto) |
| Picture-in-Picture | 2× / 4× / 8× | 2× / 4× / 8× | 2× / 4× / 8× |
| Eye relief | 52 mm | 52 mm | 52 mm |
| Diopter adjustment | −5 to +5 | −5 to +5 | −5 to +5 |
| Connectivity | Wi-Fi, Bluetooth & microphone | Wi-Fi, Bluetooth & microphone | Wi-Fi, Bluetooth & microphone |
| Built-in memory | 32 GB | 64 GB | 64 GB |
| Power | |||
| Battery | 2 × 18350 | 2 × 18350 | 2 × 18350 |
| Maximum battery life | 7 hours | 6 hours | 6 hours |
| USB interface | USB Type-C | USB Type-C | USB Type-C |
| Physical | |||
| Dimensions | 5.9 × 2.55 × 2.48 in | 5.9 × 2.55 × 2.48 in | 6.22 × 2.55 × 2.91 in |
| Weight | 16.4 oz | 15.7 oz | 15.6 oz |
| Housing material | Magnesium alloy | Magnesium alloy | Magnesium alloy |
| Environmental | |||
| Protection rating | IP67 | IP67 | IP67 |
| Operating temperature | −4°F to 122°F | −4°F to 122°F | −4°F to 122°F |
| Storage temperature | −40°F to 122°F | −40°F to 122°F | −40°F to 122°F |
| Maximum recoil | 1,200 g recoil resistance; rated up to .375 H&H Magnum and 12-gauge | 1,200 g recoil resistance; rated up to .375 H&H Magnum and 12-gauge | 1,200 g recoil resistance; rated up to .375 H&H Magnum and 12-gauge |
