640 detail for open country
A 640 × 512 thermal sensor and 50 mm f/1.0 lens help reveal detail across fields, pastures and longer observation lanes.
Find the heat. Check the distance.
640 thermal sensor · 50 mm lens · Integrated laser rangefinder
ZEN Q50R 640 Thermal Scope ...
TanGet notified when this item is back in stock
Press & drag to view
Q50R
Explore the details.
Handheld scanning and scope use
Carry the Q50R as a handheld scanner or use a compatible mount for a dedicated thermal-scope setup. The magnesium-alloy housing keeps the format compact. Verify the selected profile and zero after mounting.
Integrated ranging and BC support
The Q50R combines an integrated laser rangefinder with support for app-configured ballistic profiles.
Watch original outdoor footage with range readings of 123–124 yd. This clip shows the rangefinding display.
ZenTrace location tracking: Use your Q50R rangefinder with ZSYNC to mark observation locations on the map and help find your way back. Now supported across all Zentron devices with built-in LRF. Update your app and device firmware before use.
Q50R
Built for the field.
KEY SPECIFICATIONS

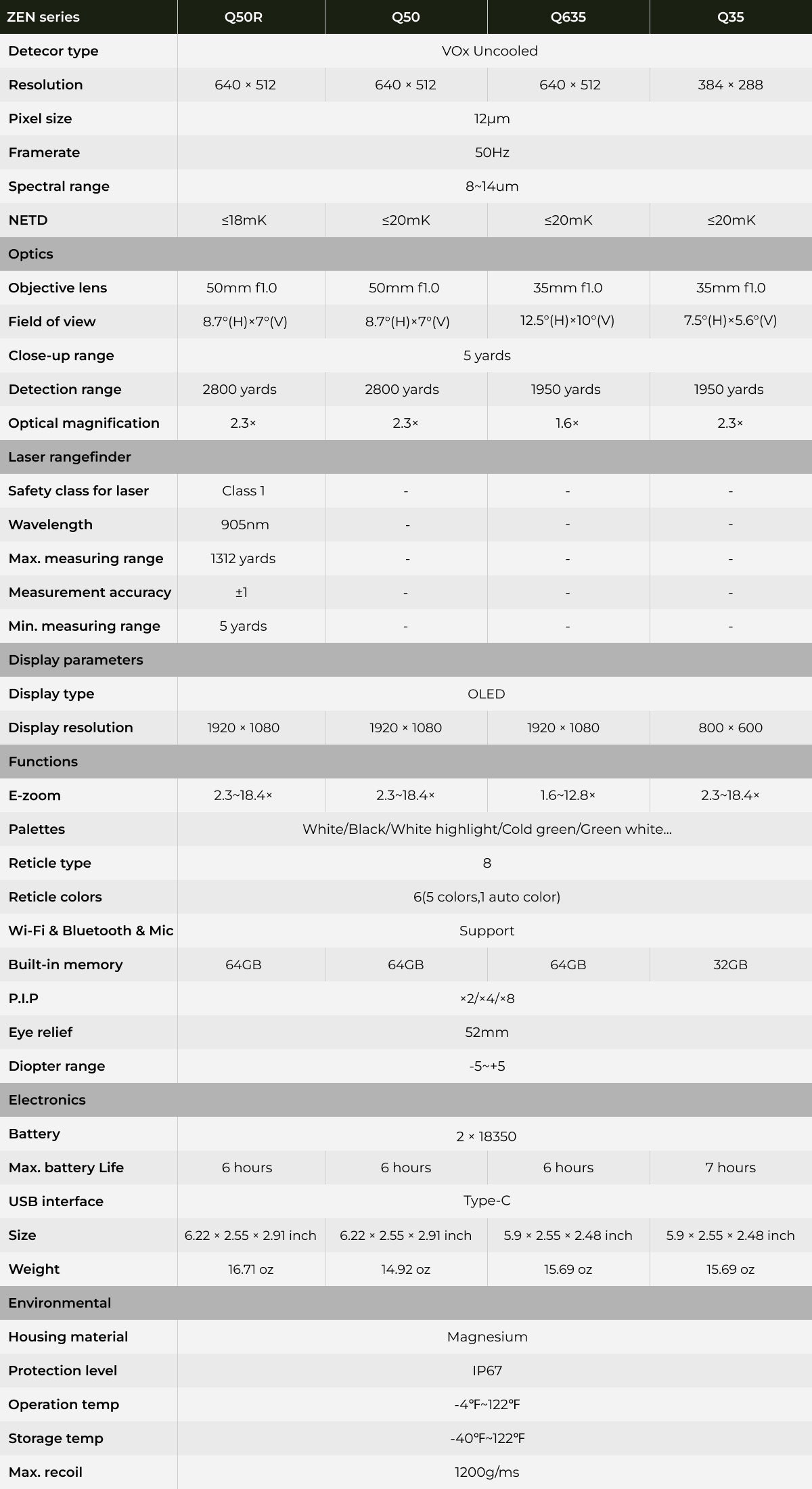

Q50R specifications
The essentials at a glance. Expand below for complete technical details.
- Sensor resolution
- 640 × 512
- Objective lens
- 50 mm f/1.0
- Weight
- 16.71 oz
- Thermal sensitivity (NETD)
- ≤18 mK
- Laser rangefinder (max.)
- 1,312 yd
- Optical magnification
- 2.3×
- Battery life (max.)
- 6 hours
View full specifications Hide full specifications
Sensor & Imaging
| Detector type | VOx uncooled |
|---|---|
| Resolution | 640 × 512 |
| Pixel pitch | 12 μm |
| Frame rate | 50 Hz |
| Spectral range | 8–14 μm |
| NETD | ≤18 mK |
Optics
| Objective lens | 50 mm f/1.0 |
|---|---|
| Field of view | 8.7° (H) × 7° (V) |
| Close focus | 5 yd |
| Detection range | 2,800 yd |
| Optical magnification | 2.3× |
Laser Rangefinder
| Laser safety class | Class 1 |
|---|---|
| Wavelength | 905 nm |
| Maximum measuring range | 1,312 yd |
| Measurement accuracy | ±1 yd |
| Minimum measuring range | 5 yd |
Display & Features
| Display type | OLED |
|---|---|
| Display resolution | 1920 × 1080 |
| Digital zoom | 2.3–18.4× |
| Color palettes | Multiple thermal palettes |
| Reticle types | 8 |
| Reticle colors | 6 (5 colors + Auto) |
| Picture-in-Picture | 2× / 4× / 8× |
| Eye relief | 52 mm |
| Diopter adjustment | −5 to +5 |
| Connectivity | Wi-Fi, Bluetooth & microphone |
| Built-in memory | 64 GB |
Power
| Battery | 2 × 18350 |
|---|---|
| Maximum battery life | 6 hours |
| USB interface | USB Type-C |
Physical

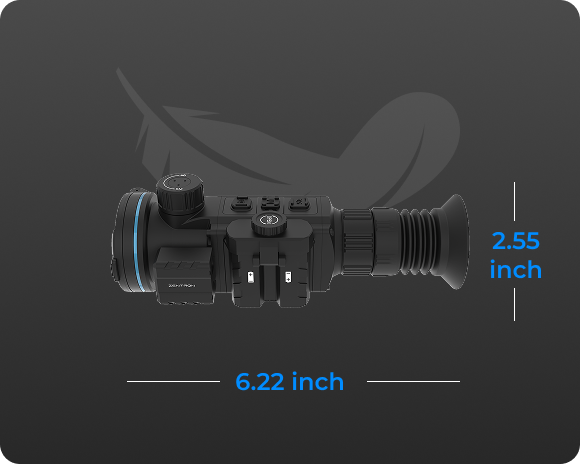

| Dimensions | 6.22 × 2.55 × 2.91 in |
|---|---|
| Weight | 16.71 oz |
| Housing material | Magnesium alloy |
Environmental
| Protection rating | IP67 |
|---|---|
| Operating temperature | −4°F to 122°F |
| Storage temperature | −40°F to 122°F |
| Maximum recoil | 1,200 g recoil resistance; rated up to .375 H&H Magnum and 12-gauge |
ZENTRON COMMUNITY
Customer reviews
Share your experience with this product. Tell other users what worked well and what could be improved. Photos, videos and practical setup tips are welcome.
Need help with setup or service? Contact Zentron Support
