ZEN C50R 640 Thermal Clip-On | 50mm Precision. Any Platform, Any Setup.

Thermal viewing and ranging for your day optic.
640 thermal sensor · 50 mm lens · Integrated laser rangefinder

$3,250.00 USD

Available to order · Ships in 2–3 weeks

Shipping calculated at checkout.

SKU: C50R-B

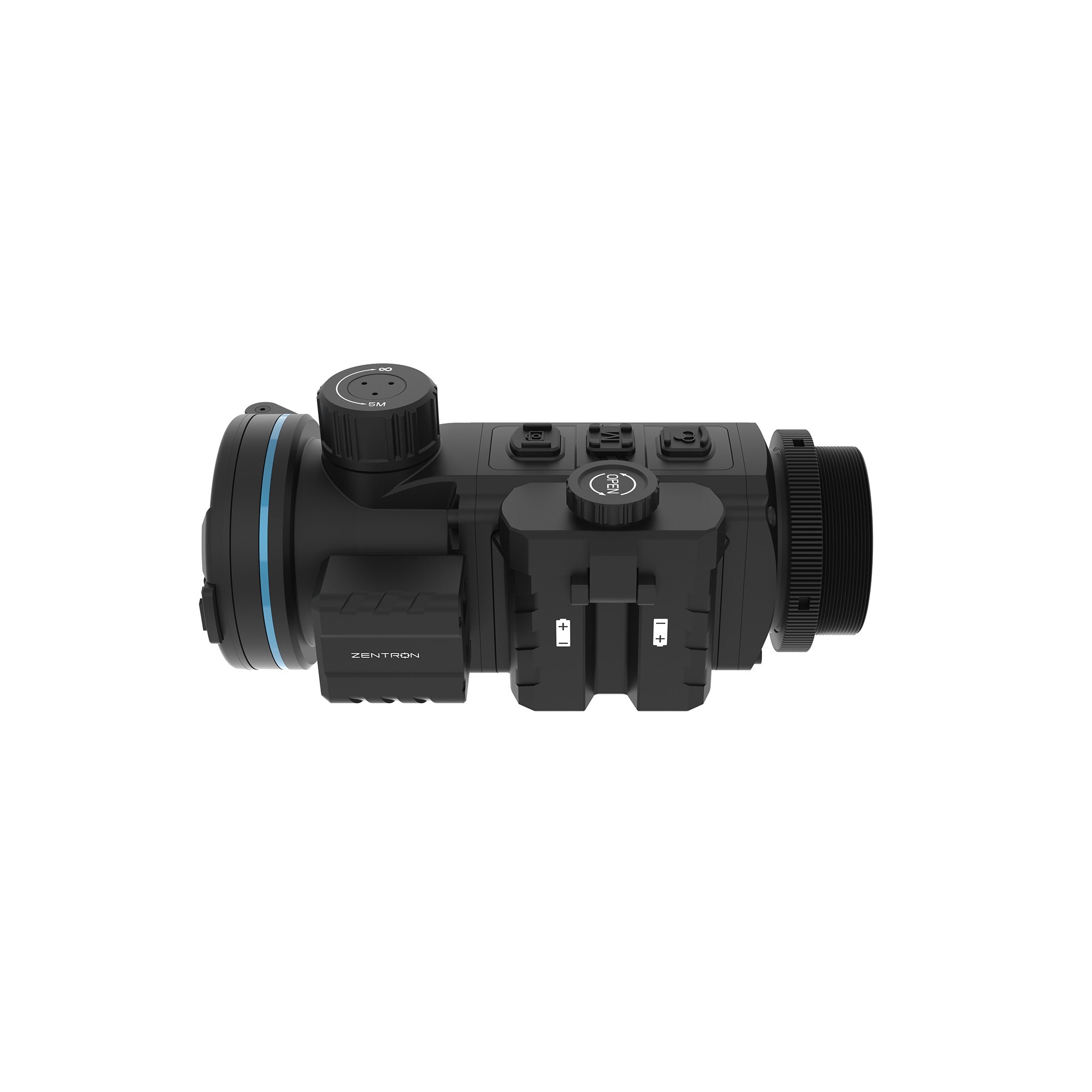

Color: Black

Need help choosing a configuration? Call +1 (469) 498-1090.

Shipping & delivery · Warranty & returns · Find a dealer

Compare C Series models

C35

A practical first thermal clip-on.

384 × 288 · 35 mm f/1.0 · Laser rangefinder: Not built in

Device weight: 14.46 oz

$1,850.00 USD Explore C35

C50

640 detail for the day optic you know.

640 × 512 · 50 mm f/1.0 · Laser rangefinder: Not built in

Device weight: 13.75 oz

$2,950.00 USD Explore C50

C50R You’re viewing

Thermal detail and ranging for your day optic.

640 × 512 · 50 mm f/1.0 · Laser rangefinder: 1,312 yd

Device weight: 14.99 oz

$3,250.00 USD

Full series comparison

Payment and security

Your payment information is processed securely.

Product details

The ZEN C50R combines a 640 thermal sensor, 50 mm lens and integrated laser rangefinder in a clip-on built for open fields and longer shooting lanes. It adds thermal and ranging capability while keeping your familiar day optic in place.

Detailed 640 imaging for detection and identification at distance
Built-in rangefinder for fast distance checks
Compatible with selected objective adapters and aligned Picatinny setups

Best for: Predator and hog hunters who want long-range thermal performance without switching to a dedicated thermal scope.

Setup note: Confirm the adapter, centerline height and zero before hunting.

View details

640 detail for open ground

The C50R pairs a 640 × 512 sensor with a 50 mm f/1.0 objective lens. Built for hunters who want more thermal detail across fields, pastures and open country.

Add thermal to your day optic

Fit the factory-collimated clip-on ahead of a compatible day scope. Use the correct objective adapter or aligned Picatinny setup, then verify fit, optical alignment and zero before use.

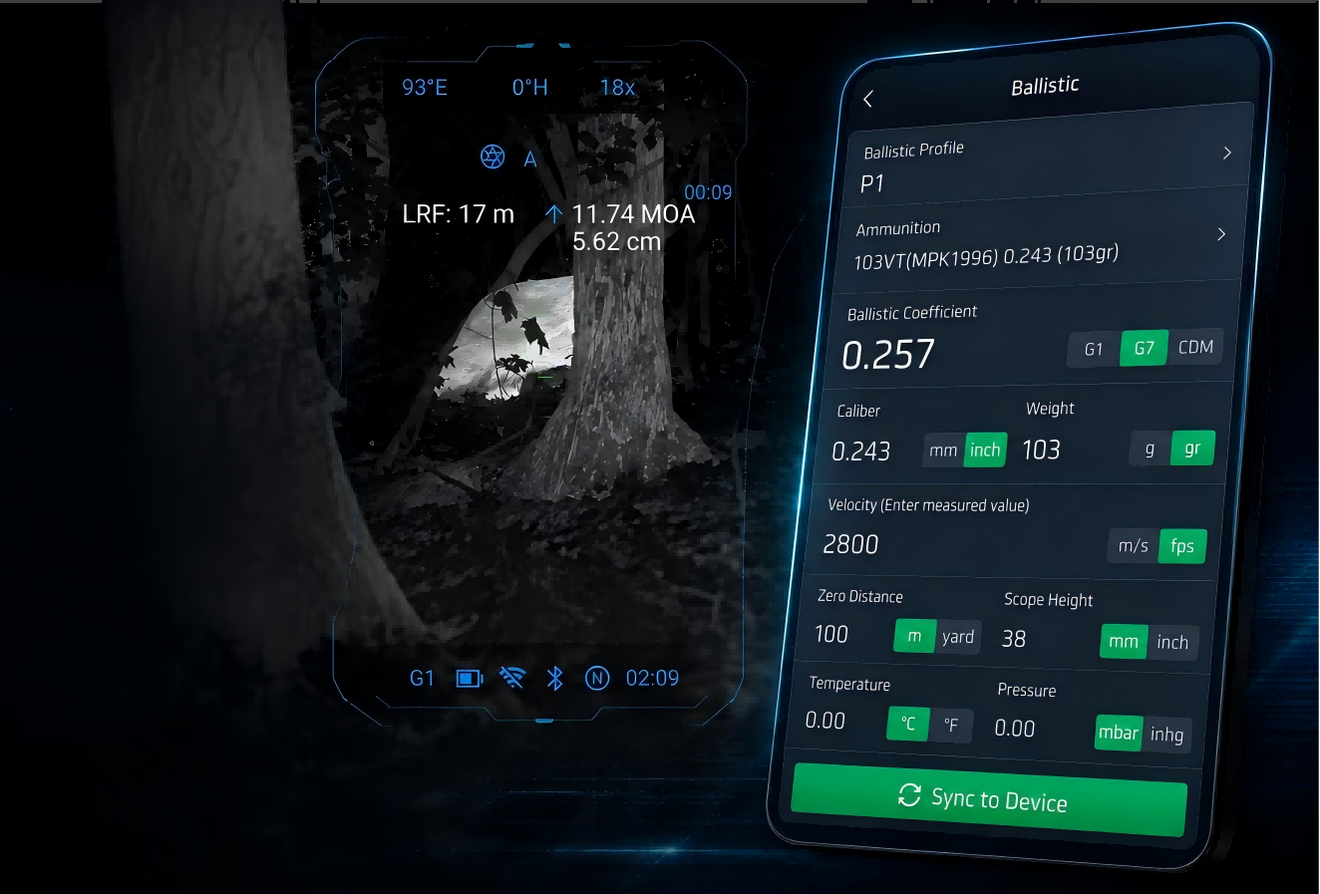

Ranging and app-configured ballistics

Check distance with the integrated laser rangefinder. Configure your ballistic profile in ZSYNC and use the saved parameters with range data for ballistic calculation. Select the correct profile and verify your setup before use.

Menus that fit your day optic

Easy Mode emphasizes frequently used functions with larger icons and text. UI Zoom lets you adjust menu size to suit your day-scope view.

IP67 Protection

Magnesium housing with an IP67 protection rating.

64GB Recording

Photos, video and recoil-activated pre-record. The virtual reticle appears in recordings only, not in the live clip-on view.

Compass & Tilt

Integrated digital compass and accelerometer.

Easy Bluetooth connection

Turn on device Bluetooth and open ZSYNC to find and connect your device, without typing a Wi-Fi password. Enjoy live view, remote controls and media downloads. Update your app and device firmware first (ZSYNC 3.0.0+; firmware V2.01+).

Compact magnesium housing

Listed device weight: 14.99 oz. Allow for the weight of your chosen adapter and mount.

Replaceable field power

Two replaceable 18350 batteries. Up to 6 hours of runtime; battery life varies with settings, temperature and use.

Bring the observation onto the map

Use your C50R rangefinder with ZSYNC to mark observation locations on the map and help revisit them. ZenTrace is now supported across all Zentron devices with built-in LRF. Update your app and device firmware before use.

Explore ZenTrace

Feature availability depends on device, firmware and app version.

Sensor resolution: 640 × 512
Objective lens: 50 mm f/1.0
Weight: 14.99 oz
Thermal sensitivity (NETD): ≤18 mK
Laser rangefinder (max.): 1,312 yd
Optical magnification: 1×
Battery life (max.): 6 hours

View full specifications Hide full specifications

Sensor & Imaging

C50R specifications — Sensor & Imaging
Detector type	VOx uncooled
Resolution	640 × 512
Pixel pitch	12 μm
Frame rate	50 Hz
Spectral range	8–14 μm
NETD	≤18 mK

Optics

C50R specifications — Optics
Objective lens	50 mm f/1.0
Field of view	8.7° (H) × 7° (V)
Close focus	5 yd
Detection range	2,800 yd
Optical magnification	1×

Laser Rangefinder

C50R specifications — Laser Rangefinder
Laser safety class	Class 1
Wavelength	905 nm
Maximum measuring range	1,312 yd
Measurement accuracy	±1 yd
Minimum measuring range	5 yd

Display & Features

C50R specifications — Display & Features
Display type	OLED
Display resolution	1920 × 1080
Digital zoom	Clip-on mode: 1× Monocular mode: 2.3–18.4×
Color palettes	Multiple thermal palettes
Connectivity	Wi-Fi, Bluetooth & microphone
Built-in memory	64 GB
Start-up time	Less than 5 seconds
Sensors	Built-in accelerometer and digital compass

Power

C50R specifications — Power
Battery	2 × 18350
Maximum battery life	6 hours
USB interface	USB Type-C

Physical

C50R specifications — Physical

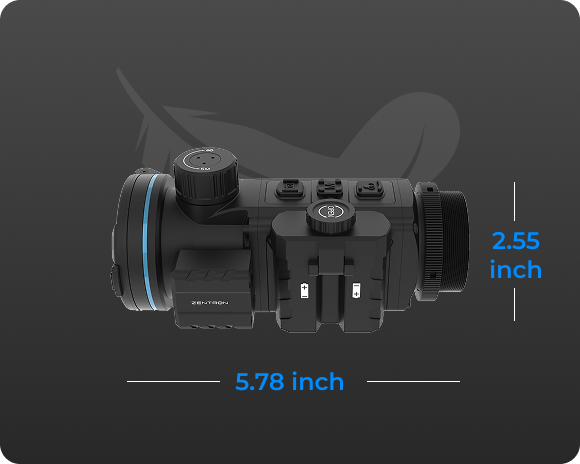

Dimensions	5.78 × 2.55 × 2.91 in
Weight	14.99 oz
Housing material	Magnesium alloy
Connection thread	M45 × 0.75

Environmental

C50R specifications — Environmental
Protection rating	IP67
Operating temperature	−4°F to 122°F
Storage temperature	−40°F to 122°F
Maximum recoil	1,000 g / 0.4 ms; rated up to .300 Win. Mag. and 7mm Rem. Mag.
