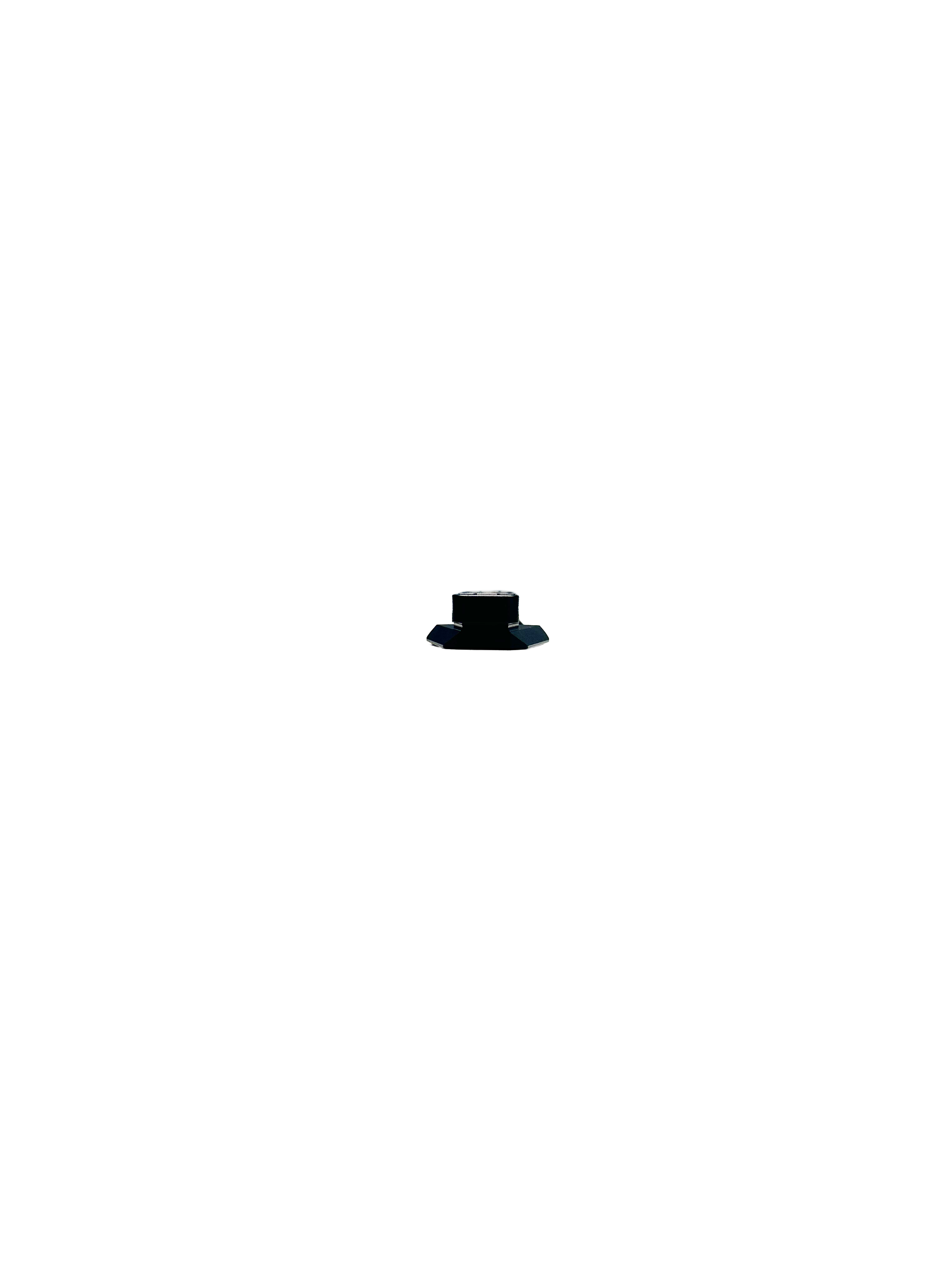

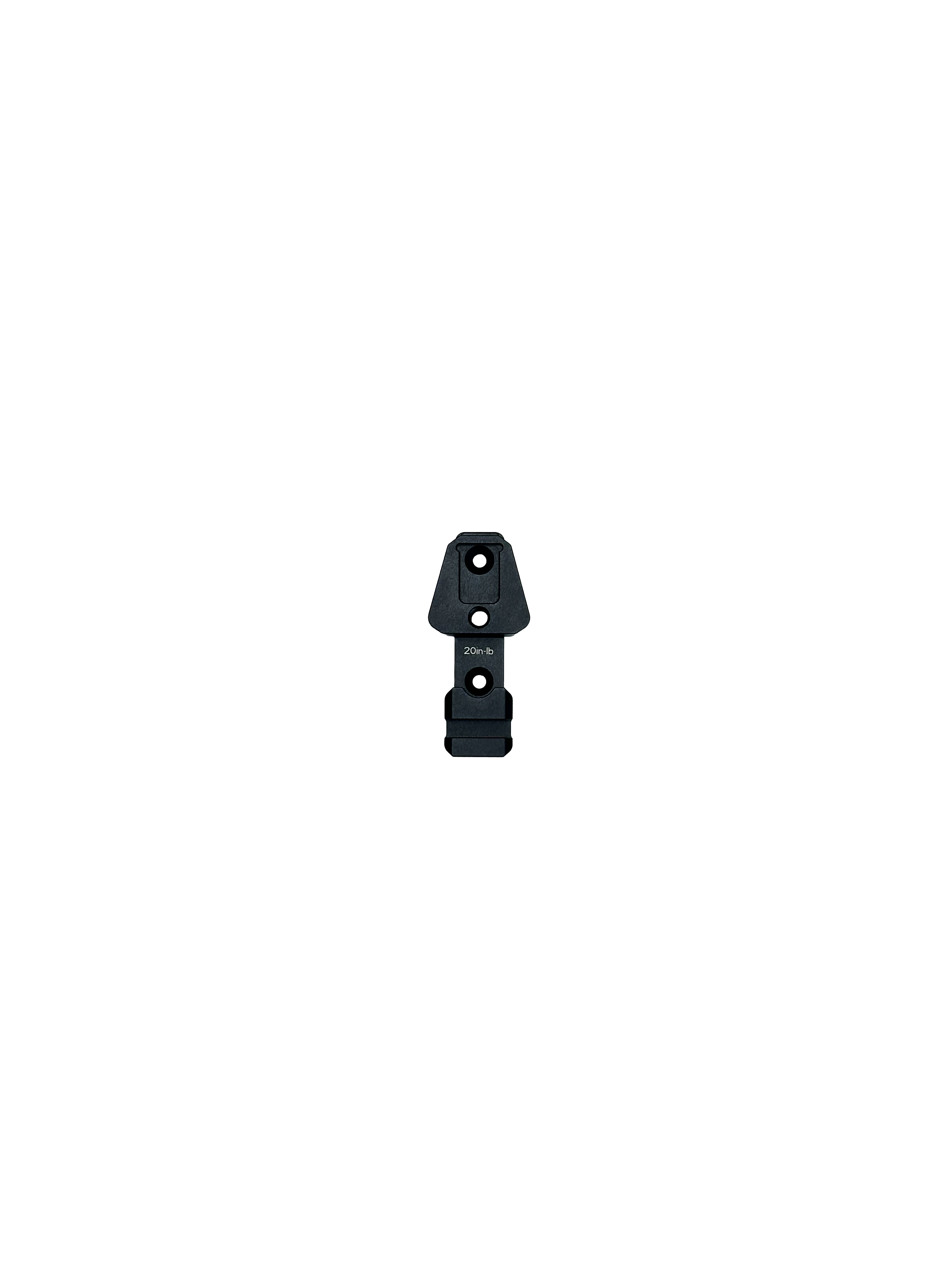

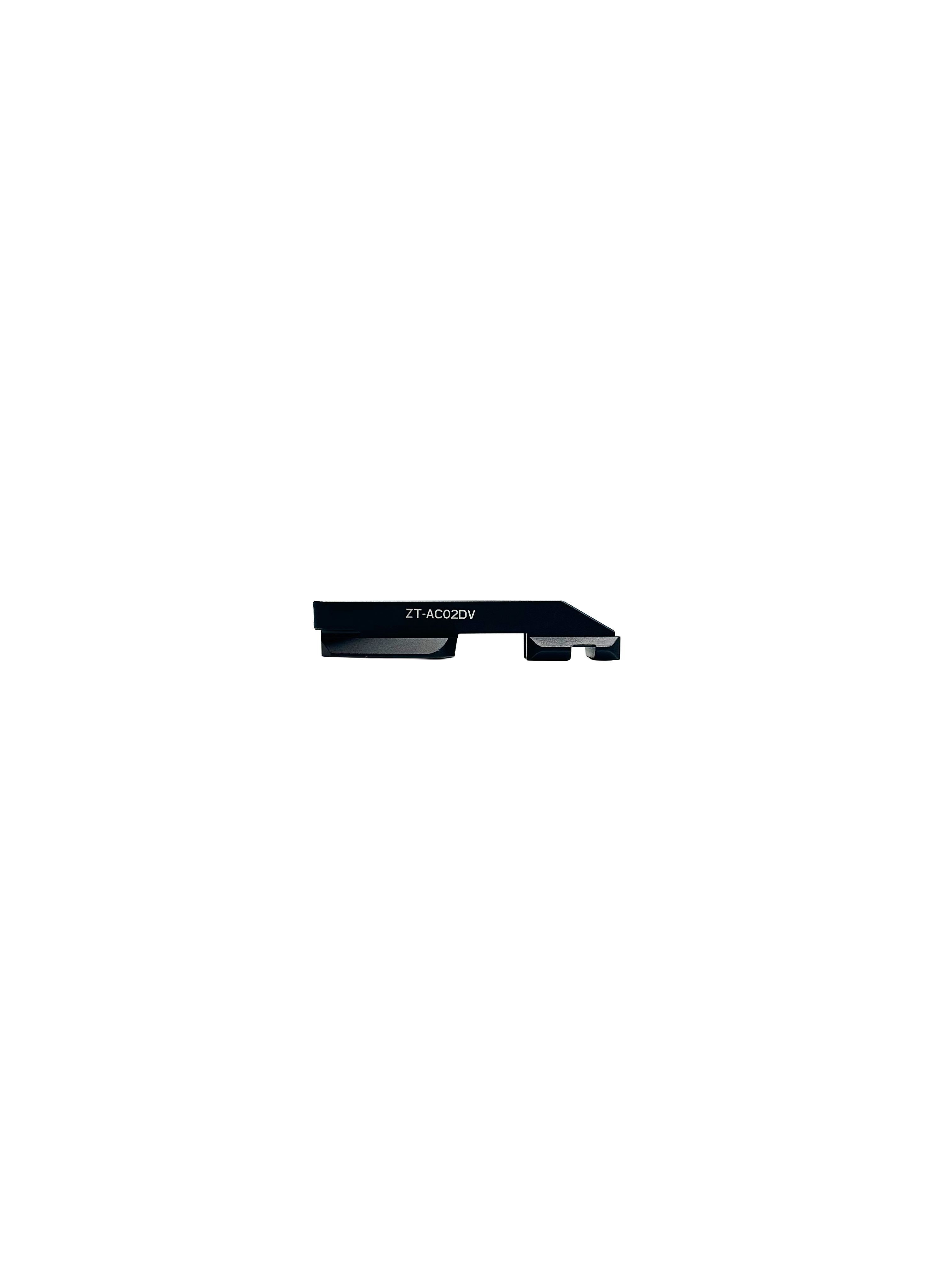

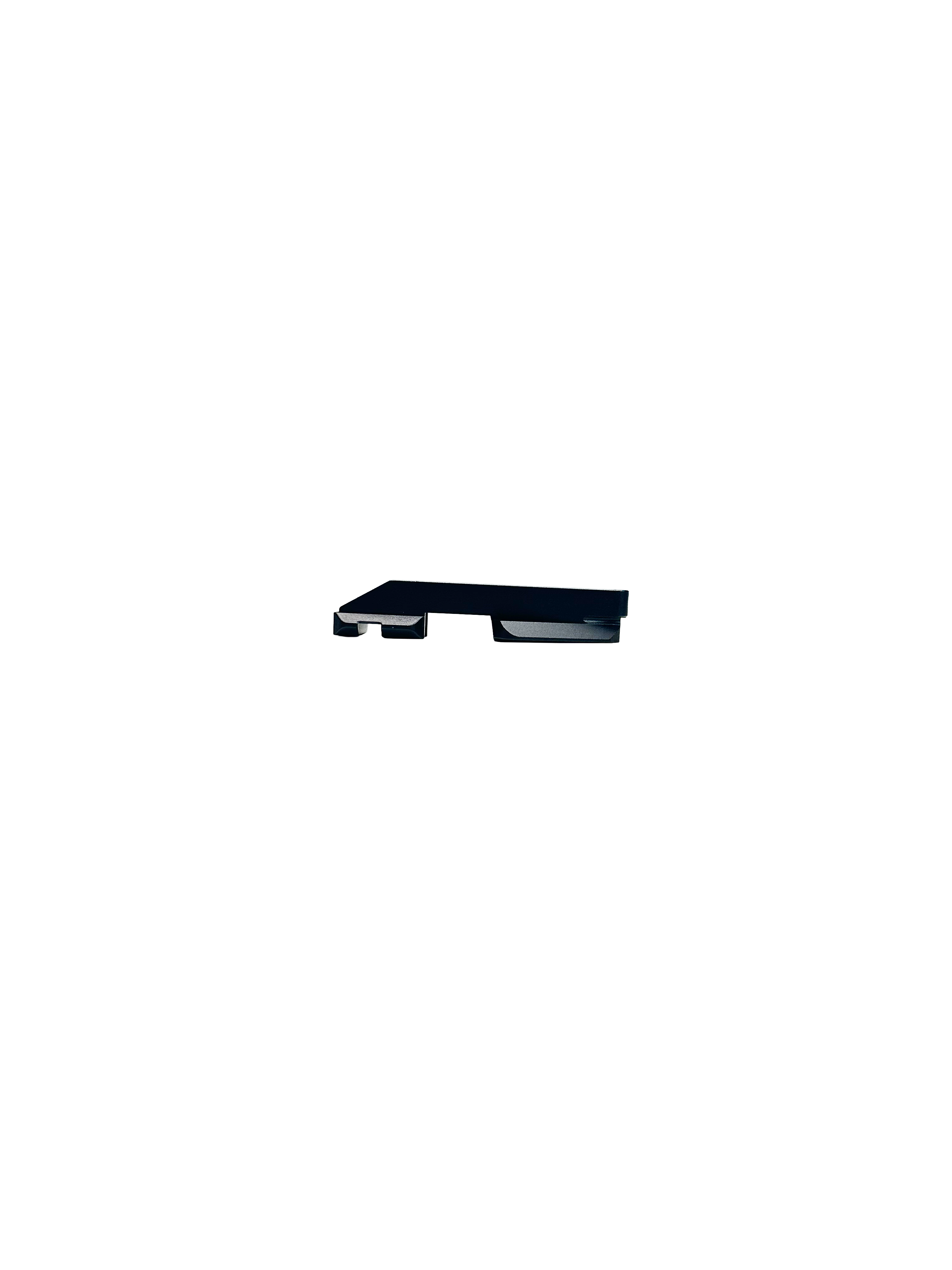

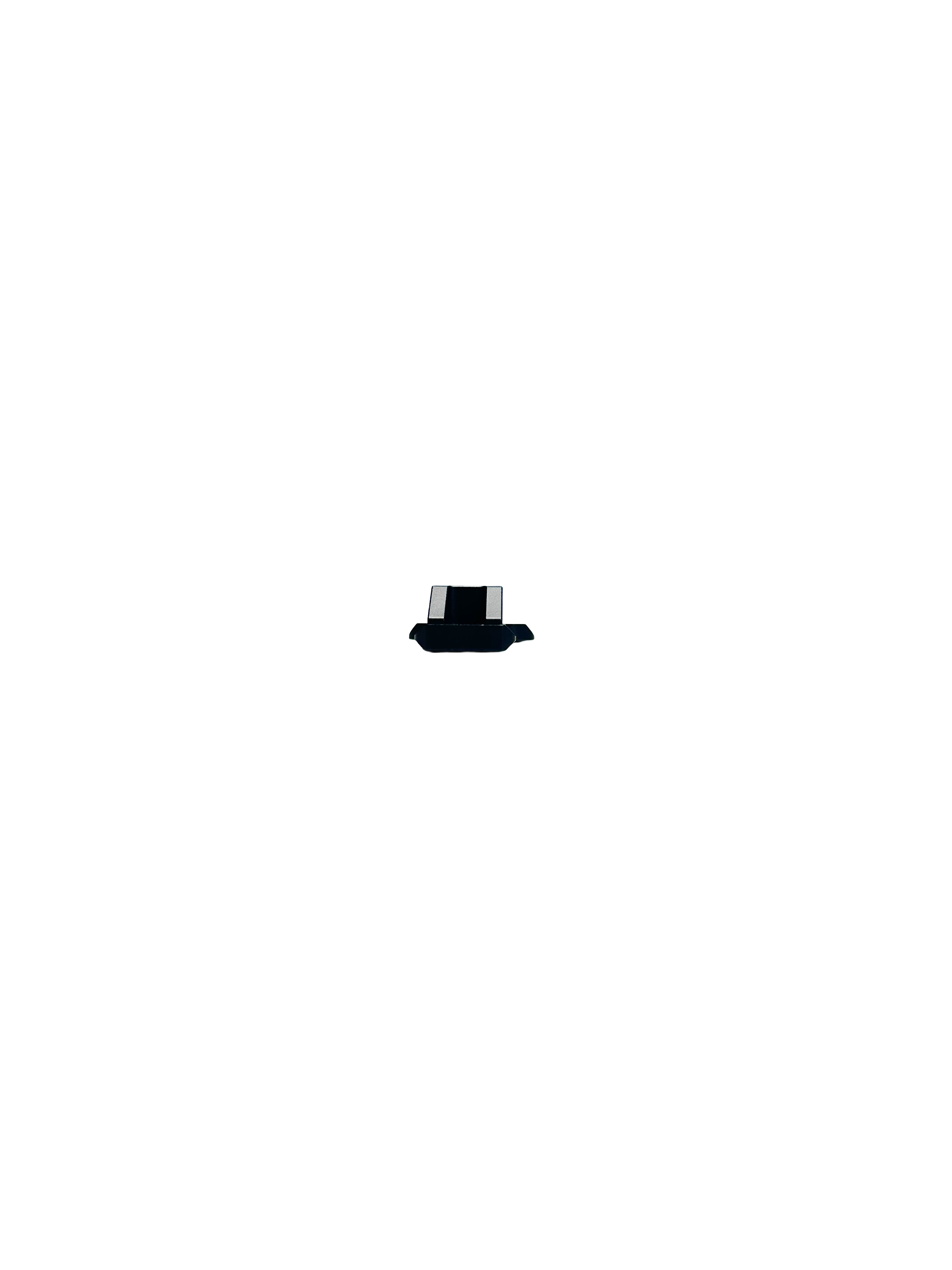

The ZT-AC02DV Dovetail Adapter is designed exclusively for compatible ZEN MEGA Series thermal devices.
Installed on the bottom of the MEGA device, the adapter provides a secure dovetail interface for connection to the ZT-AC02 Universal Quick-Release Mount. Together, the two components create a complete quick-release mounting system for attachment to a standard MIL-STD-1913 Picatinny rail.
When the ZT-AC02DV is paired with the ZT-AC02, the mounted MEGA device has a 1.5-inch optical centerline height, making it suitable for alignment with commonly used 1.5-inch-height daytime optics and weapon-mounted accessories.
Its extended, low-profile design provides a stable connection while allowing the MEGA device to be installed or removed quickly.
Key Features
- Designed specifically for compatible ZEN MEGA Series devices
- Connects the MEGA device to the ZT-AC02 Universal Quick-Release Mount
- Provides a 1.5-inch optical centerline height when paired with the ZT-AC02
- Device-side dovetail mounting interface
- Enables fast installation and removal
- Secure, stable, and low-profile construction
- Durable metal construction for hunting and field use
Complete Mounting System
The complete system consists of:
-
ZT-AC02DV MEGA Series Dovetail Adapter
Attaches directly to the bottom of the compatible MEGA device. -

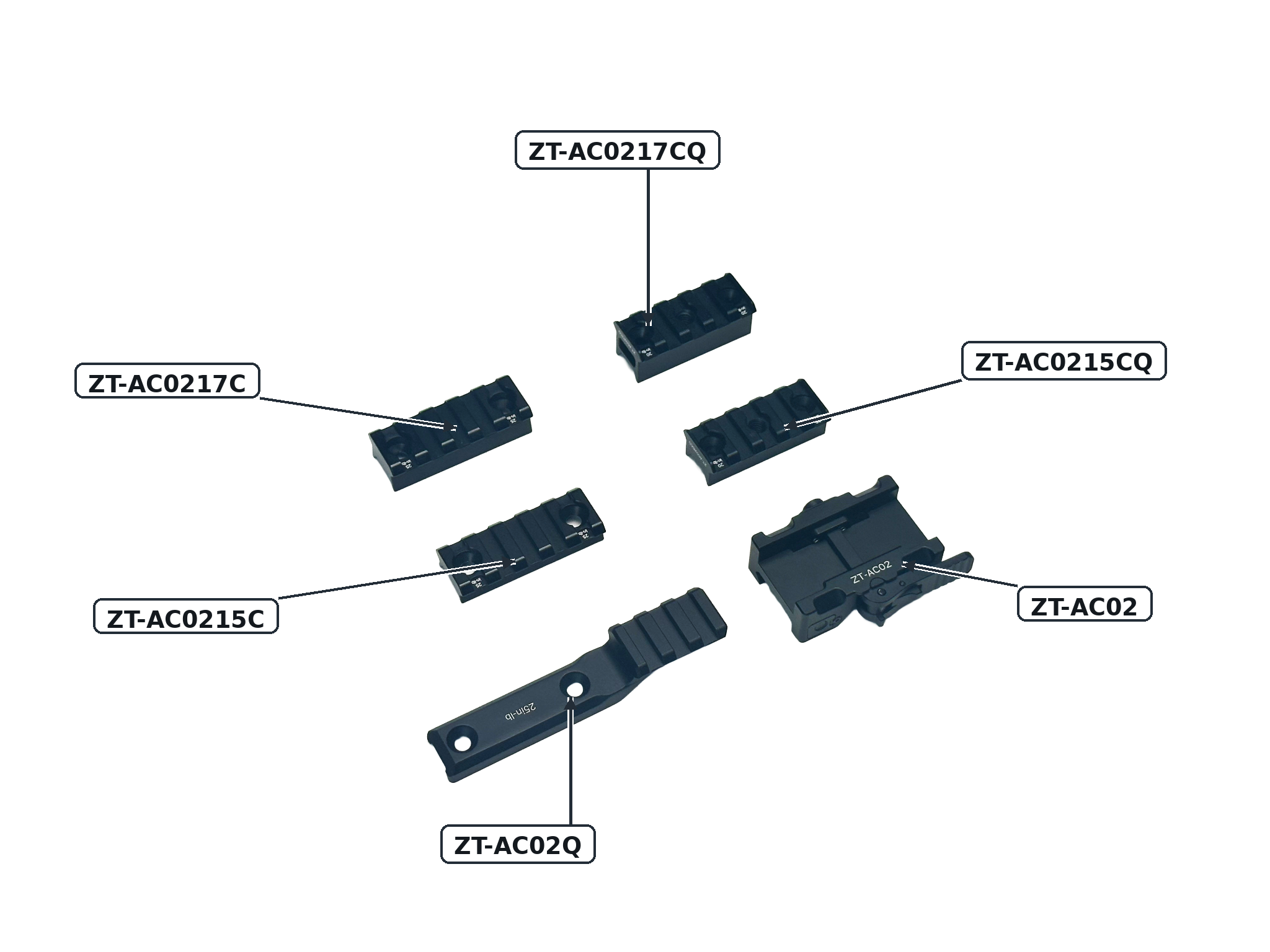

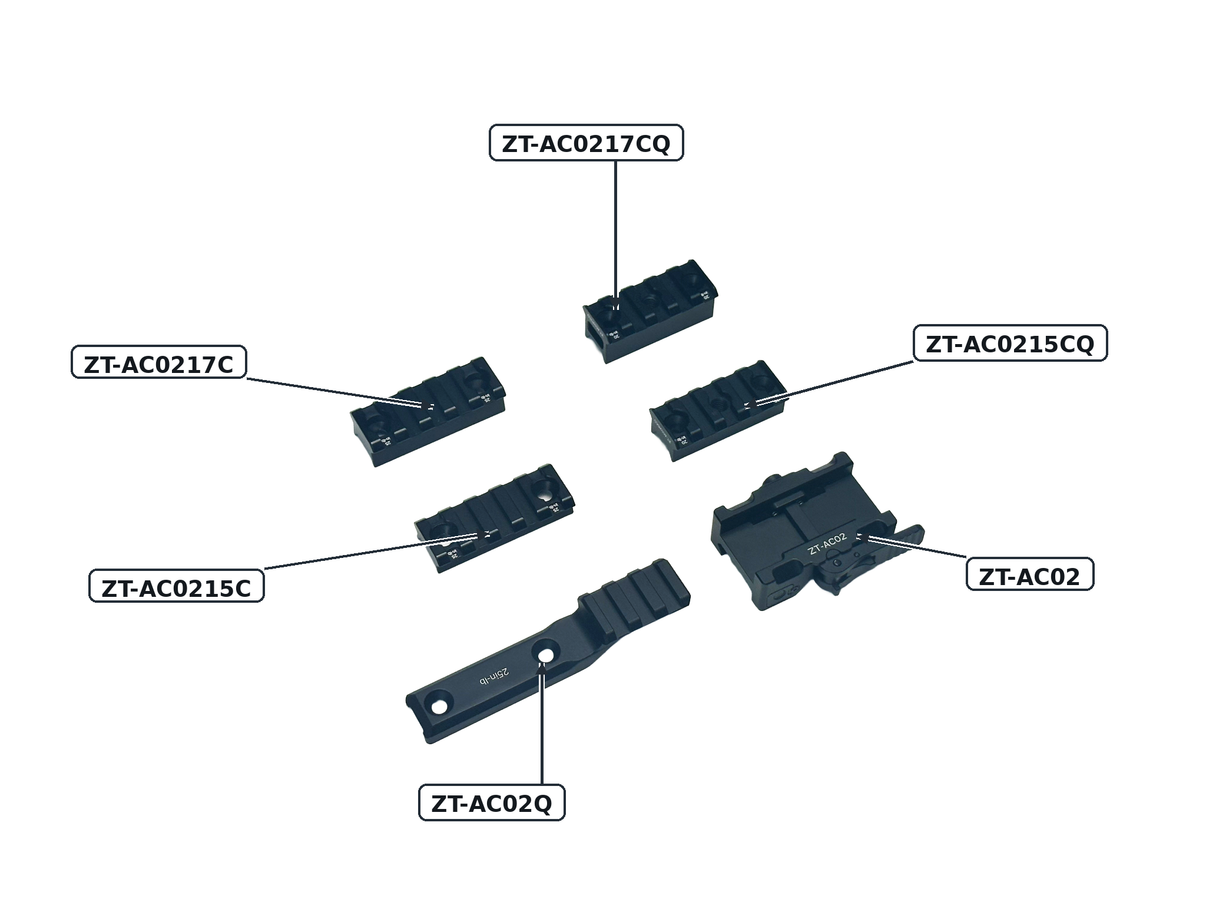

ZT-AC02 Universal Quick-Release Mount
Attaches to a standard MIL-STD-1913 Picatinny rail.
The ZT-AC02DV slides into and locks securely within the ZT-AC02 mount.
Optical Centerline Height
ZT-AC02DV + ZT-AC02 = 1.5-inch optical centerline height
This configuration is intended for setups using a matching 1.5-inch optical centerline.
Compatibility
- Device side: Compatible ZEN MEGA Series thermal devices
- Mount side: ZT-AC02 Universal Quick-Release Mount
- Rail side: Standard MIL-STD-1913 Picatinny rail through the ZT-AC02
- Optical centerline height: 1.5 inches with the complete ZT-AC02DV and ZT-AC02 system
The ZT-AC02DV does not attach directly to a Picatinny rail. The ZT-AC02 Universal Quick-Release Mount is required to complete the weapon-mounting system.
