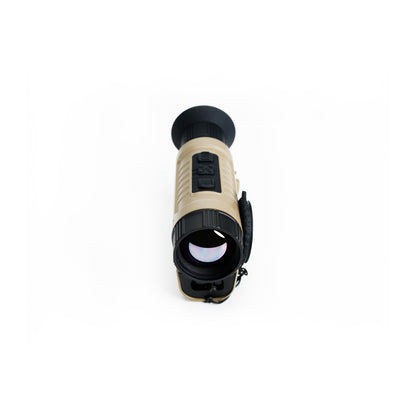

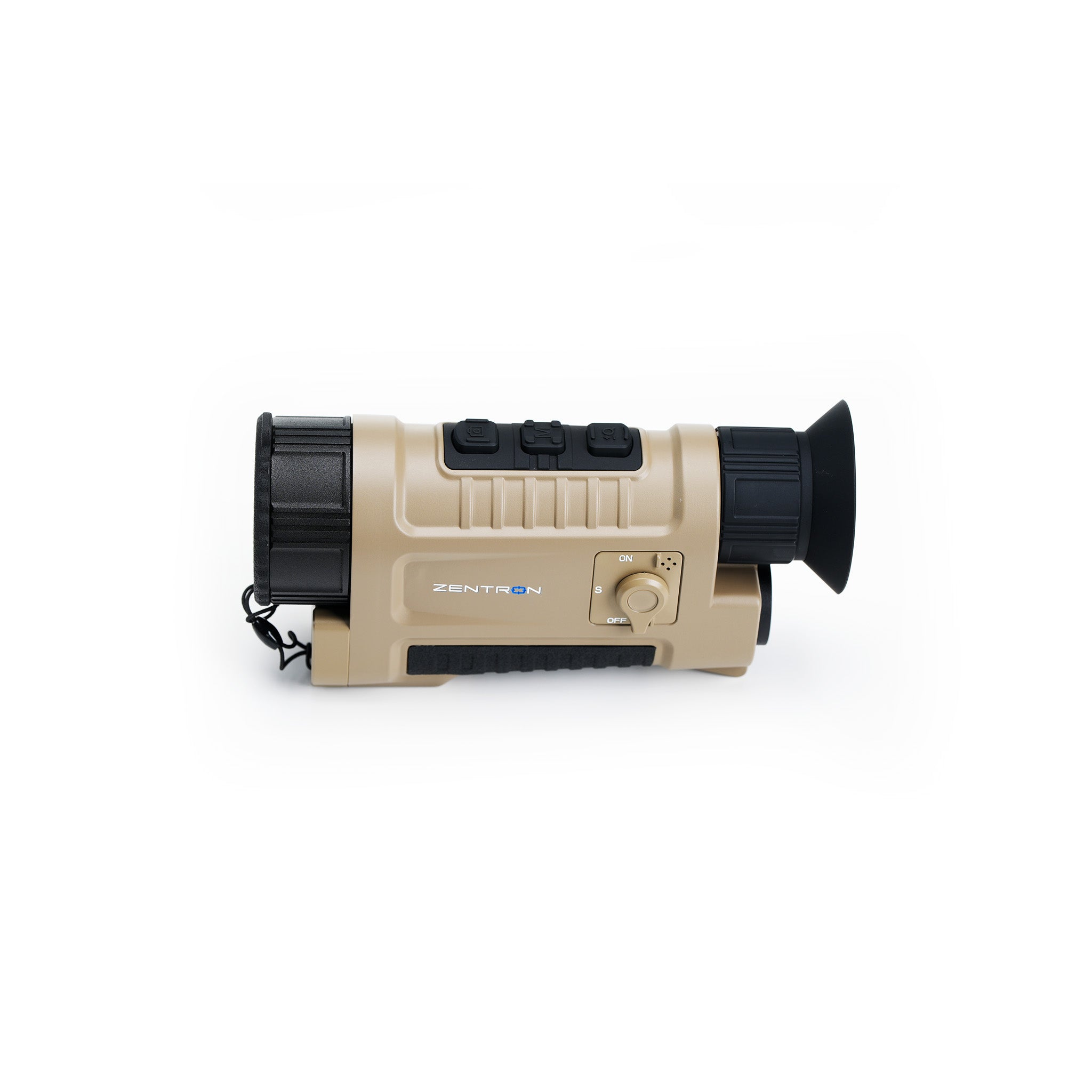

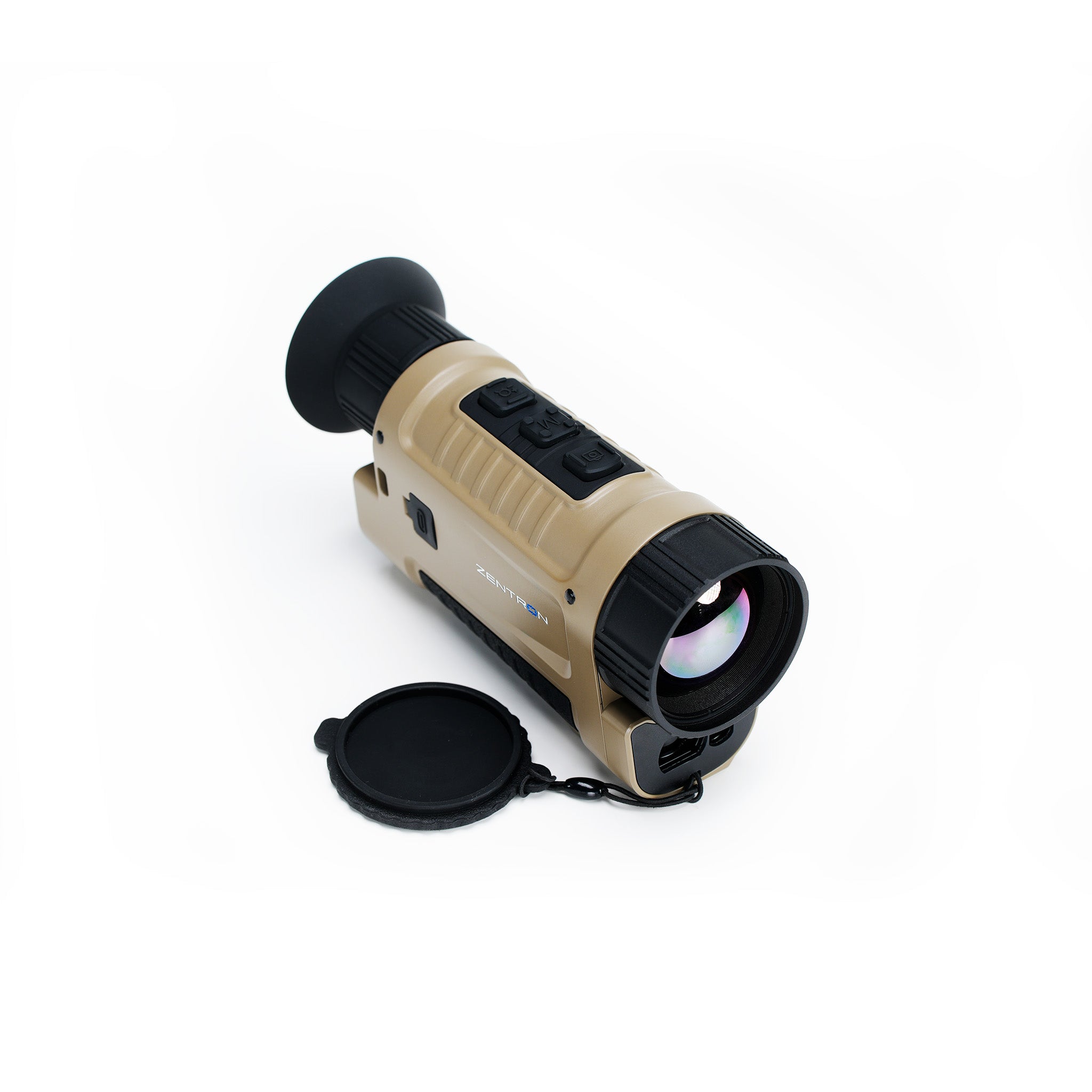

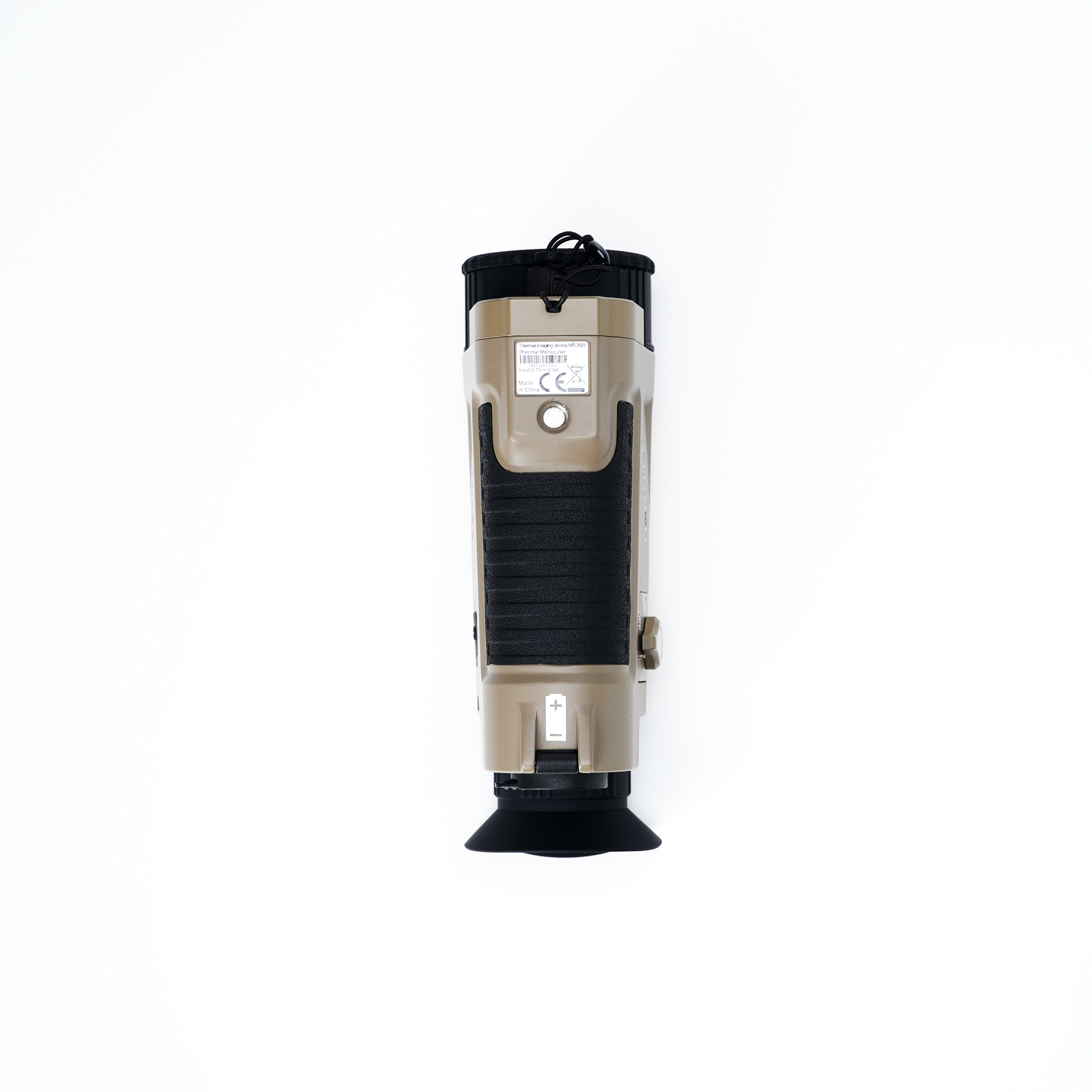

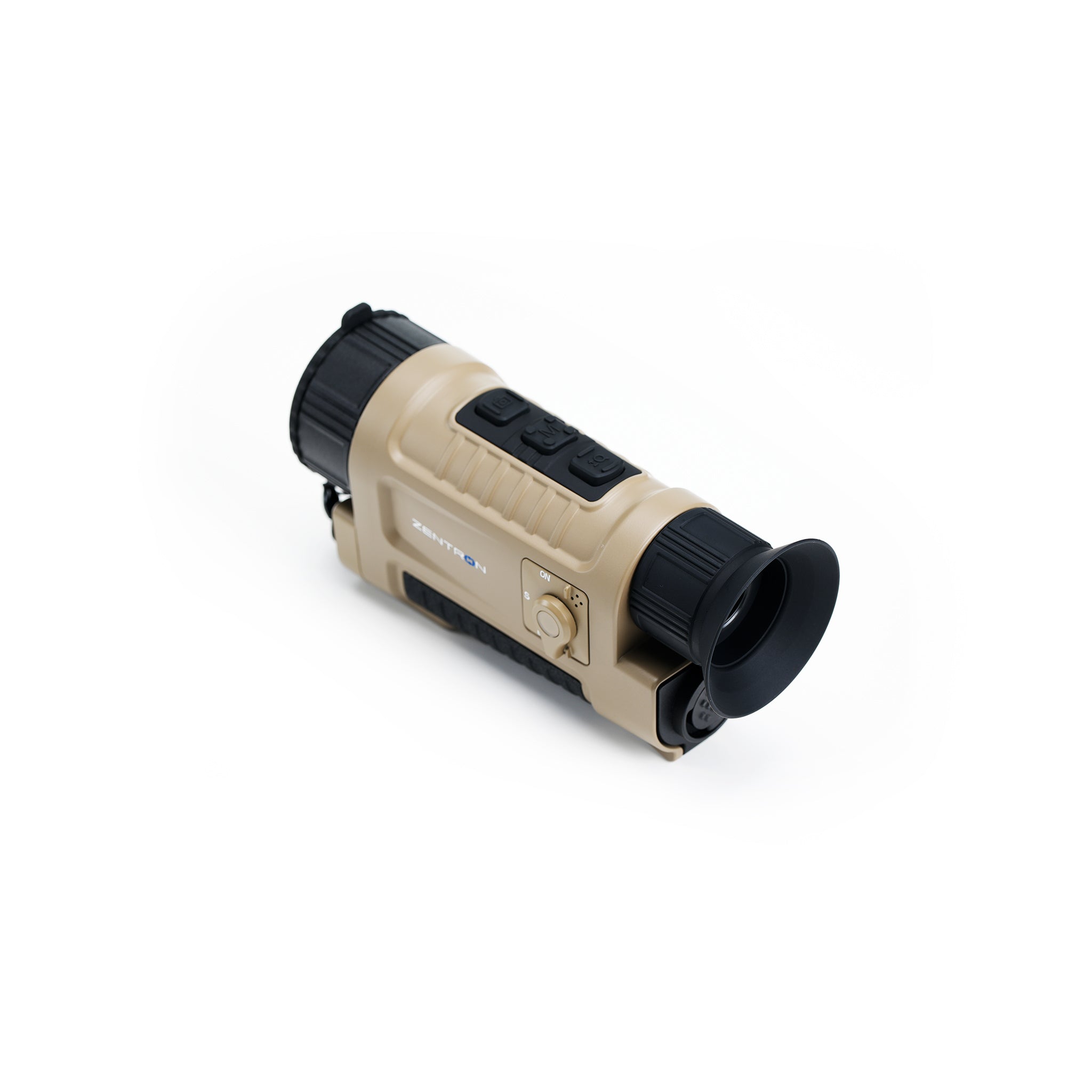

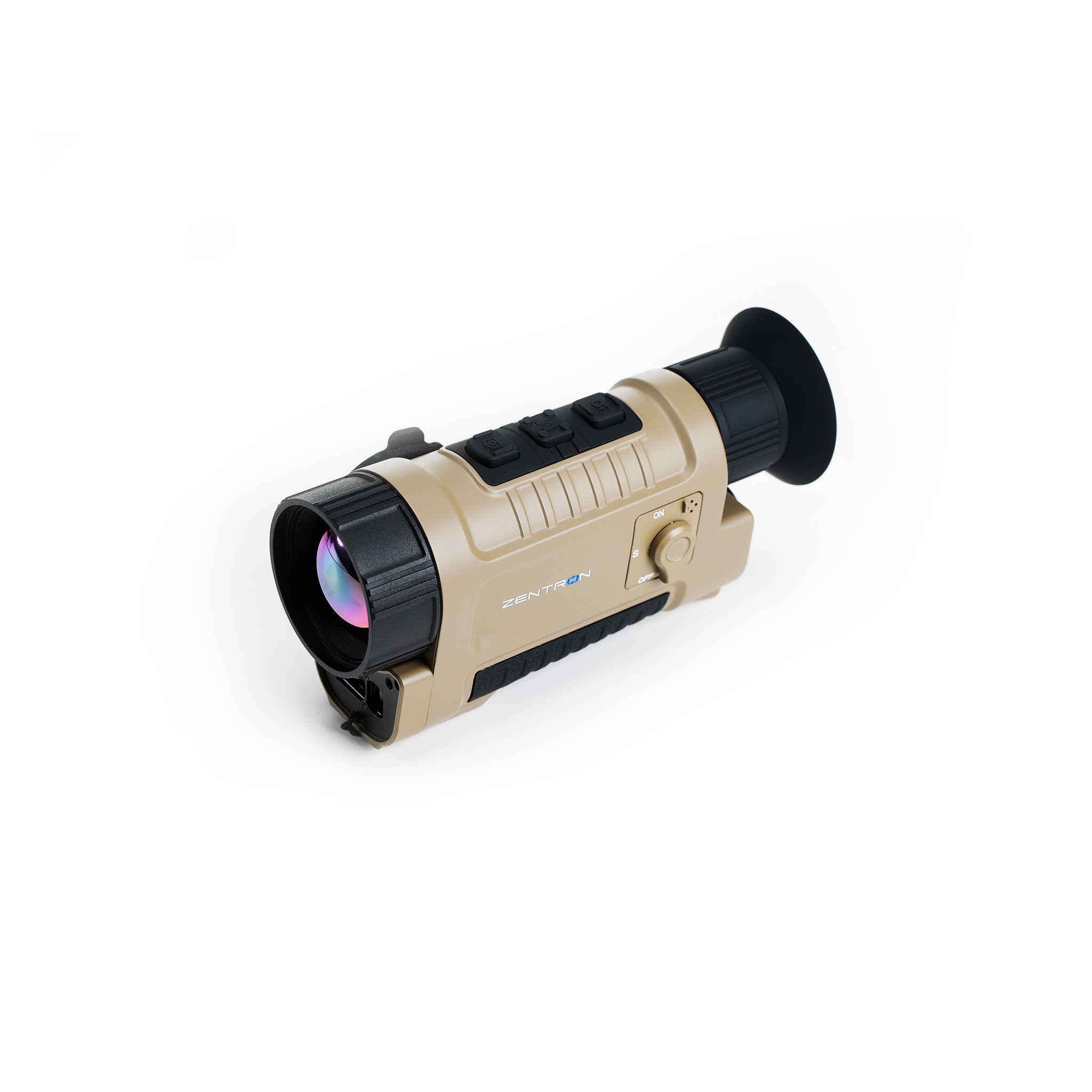

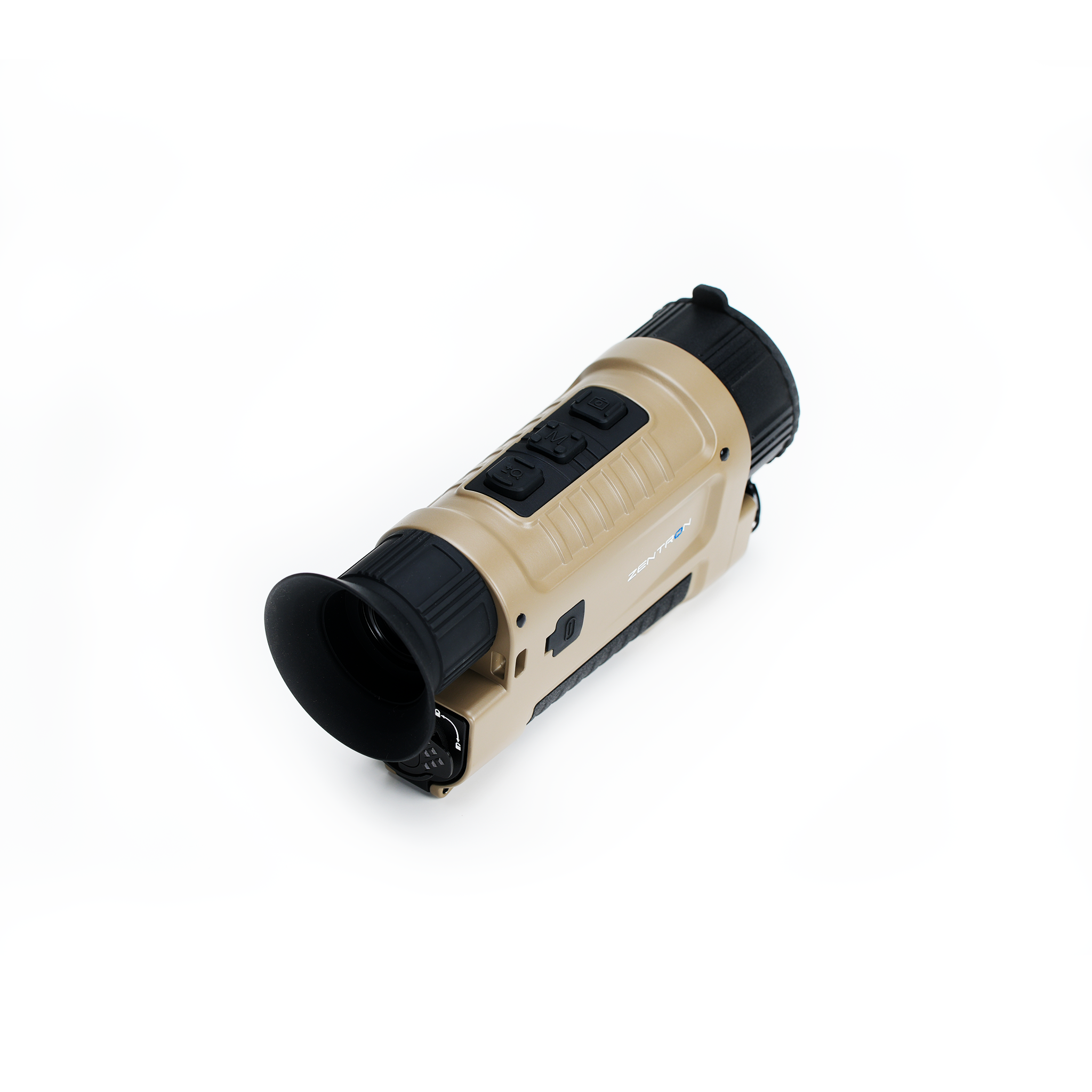

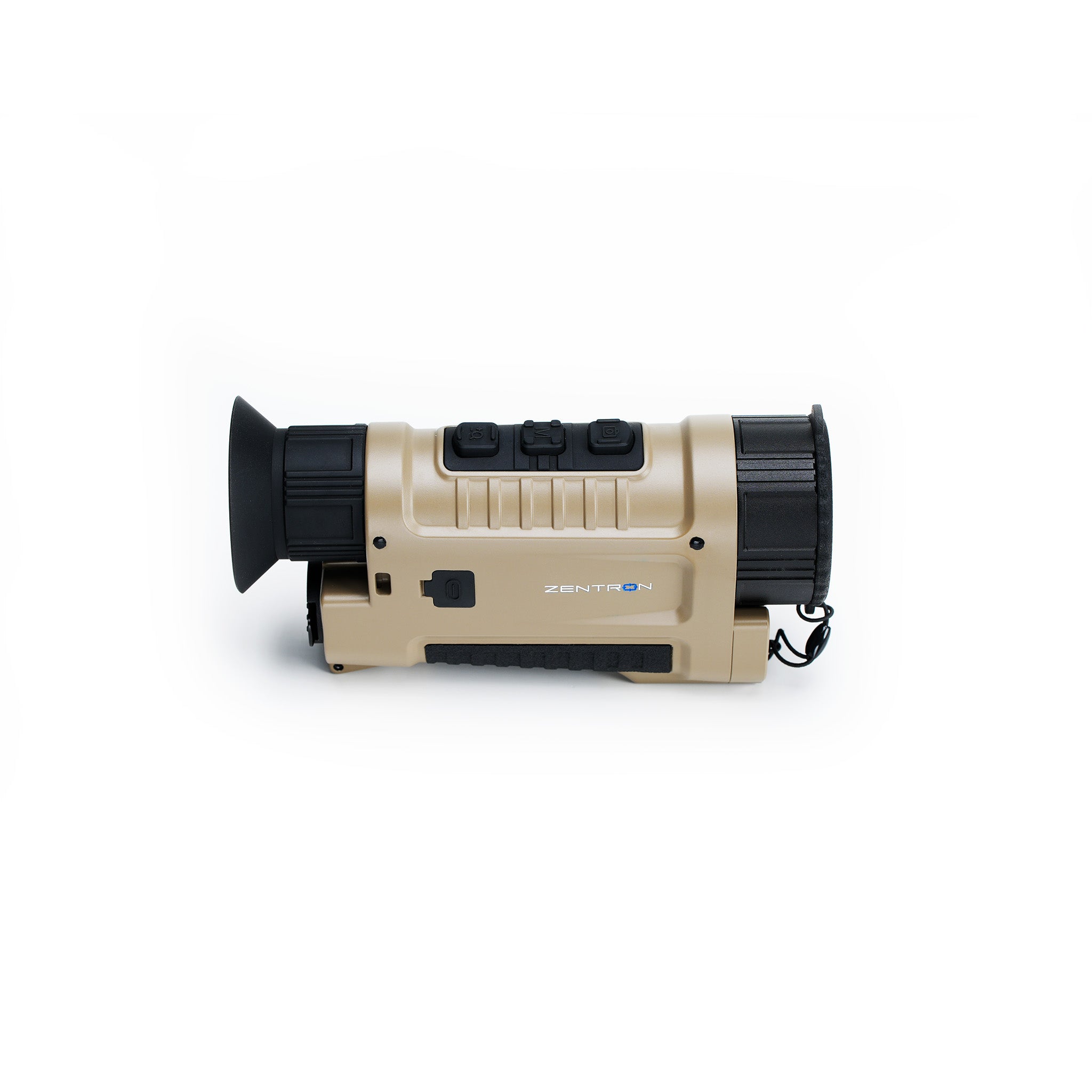

ZEN M6 640 Thermal Monocular | Magnesium Armor. Absolute Stealth. Intelligent Tracking.

Scan. Range. Plan your next move.
640 thermal sensor · 35 mm F0.9 lens · Integrated laser rangefinder

$2,295.00 USD

Available to order · Ships in 2–3 weeks

Shipping calculated at checkout.

SKU: M6-35R-B

Lens: 35mm f/0.9

35mm f/0.9

Color: Black

Need help choosing a configuration? Call +1 (469) 498-1090.

Shipping & delivery · Warranty & returns · Find a dealer

Compare M Series models

M6-35R You’re viewing

One fixed lens for everyday scanning.

640 × 512 · 35 mm f/0.9 · Laser rangefinder: 1,312 yd

$2,295.00 USD

M6 PRO

Change lenses as the terrain changes.

640 × 512 · 50 mm f/1.0 and 35 mm f/1.0 included
25 mm f/1.0 optional · Laser rangefinder: 1,312 yd

$2,695.00 USD Explore M6 PRO

Full series comparison

Payment and security

Your payment information is processed securely.

Product details

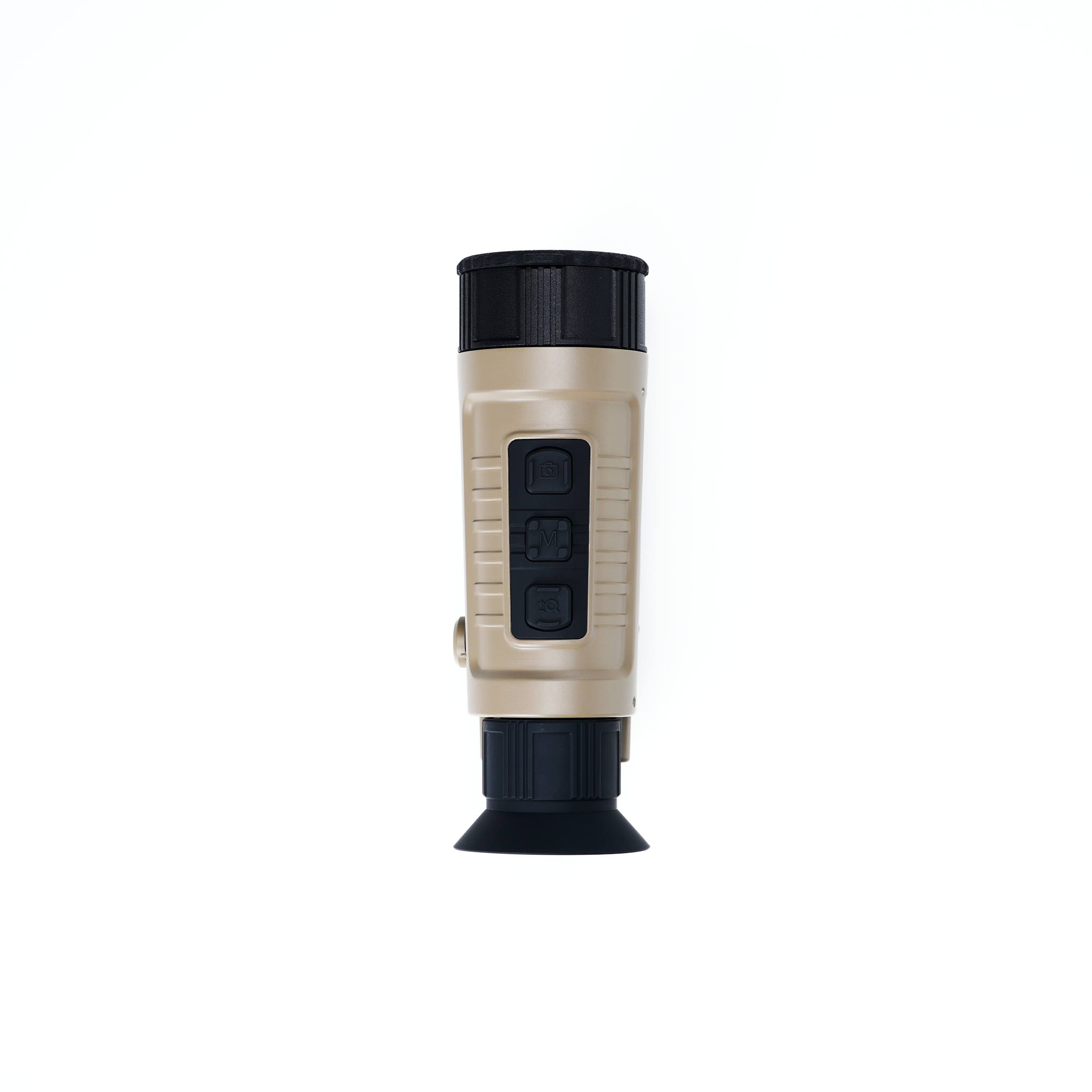

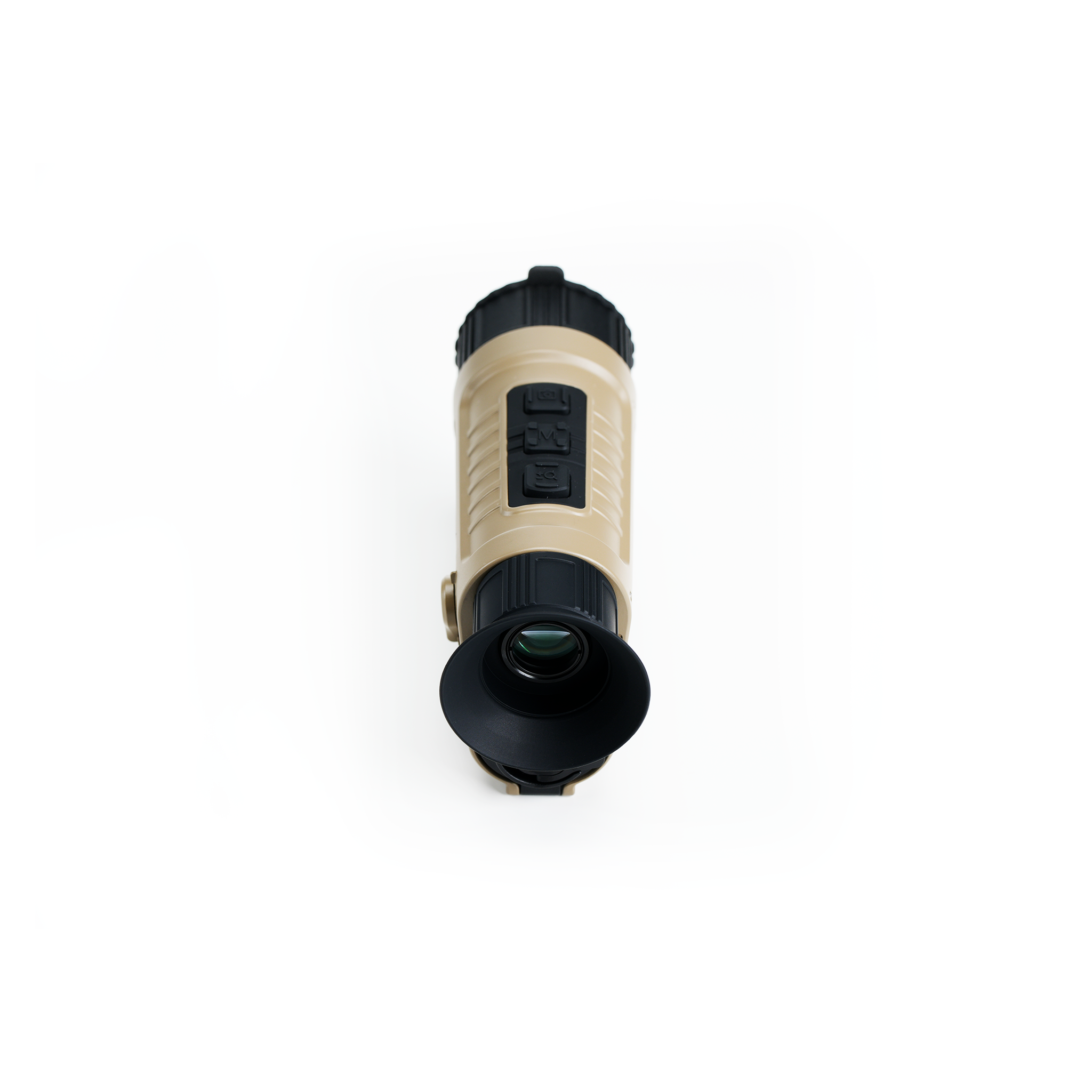

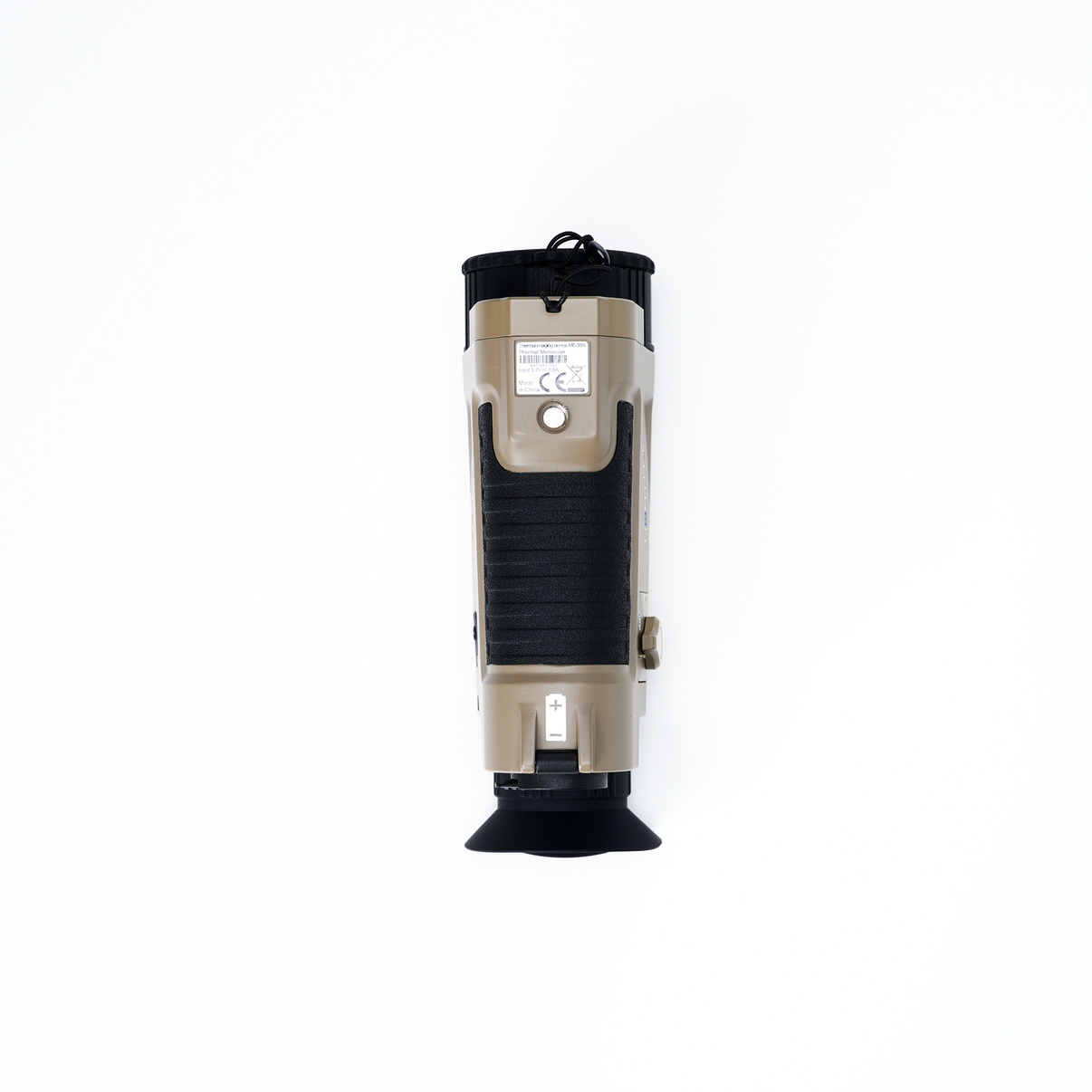

The ZEN M6-35R is a compact 640 thermal monocular for scanning fields, timber and brush before you move or set up. The fast 35 mm F0.9 lens balances field of view and reach, while the integrated laser rangefinder gives quick distance checks.

Magnesium-alloy housing with quiet, glove-friendly controls
Stalking Mode supports light discipline in the field
ZenTrace support in ZSYNC helps save and return to ranged locations

Best for: Predator and hog hunters who want a dedicated handheld scanner with built-in ranging.

View details

640 detail for observation

A 640 × 512 thermal sensor and fast 35 mm F0.9 lens balance field of view and reach. Scan fields, timber and brush before deciding where to move or set up.

Built-in laser rangefinding

Check distance through the monocular with the integrated laser rangefinder. Keep observing while you assess terrain and plan your next move.

Revisit observations with ZenTrace

See something worth remembering? Use the built-in rangefinder with ZSYNC to mark the observation location on the map and help find your way back.

ZenTrace is now supported across all Zentron devices with built-in LRF. Update your app and device firmware to the latest versions before use.

IP67 Protection

Magnesium housing with an IP67 protection rating.

Easy Bluetooth connection

Turn on device Bluetooth and open ZSYNC to find and connect your device, without typing a Wi-Fi password. Enjoy live view, remote controls and media downloads. Update your app and device firmware first (ZSYNC 3.0.0+; firmware V2.01+). Includes 64GB onboard recording.

Compass & Tilt

Integrated digital compass and accelerometer.

Auto Sleep

Orientation-based standby helps conserve battery power.

Quiet, tactile controls

An ambidextrous housing with controls you can identify by touch. Stalking Mode supports light discipline.

Replaceable field power

One replaceable 18650 battery. Up to 7 hours of runtime; battery life varies with settings, temperature and use.

Sensor resolution: 640 × 512
Objective lens: 35 mm f/0.9
Weight: 12.34 oz
Thermal sensitivity (NETD): ≤18 mK
Laser rangefinder (max.): 1,312 yd
Optical magnification: 1.9×
Battery life (max.): 7 hours

View full specifications Hide full specifications

Sensor & Imaging

M6-35R specifications — Sensor & Imaging
Detector type	VOx uncooled
Resolution	640 × 512
Pixel pitch	12 μm
Frame rate	50 Hz
Spectral range	8–14 μm
NETD	≤18 mK

Optics

M6-35R specifications — Optics
Objective lens	35 mm f/0.9
Field of view	12.5° (H) × 10° (V)
Close focus	5 yd
Detection range	1,950 yd
Optical magnification	1.9×

Laser Rangefinder

M6-35R specifications — Laser Rangefinder
Laser safety class	Class 1
Wavelength	905 nm
Maximum measuring range	1,312 yd
Measurement accuracy	±1 yd
Minimum measuring range	5 yd

Display & Features

M6-35R specifications — Display & Features
Display type	OLED
Display resolution	1920 × 1080
Digital zoom	1.9–15.2×
Color palettes	Multiple thermal palettes
Connectivity	Wi-Fi, Bluetooth & microphone
Built-in memory	64 GB
Start-up time	Less than 5 seconds
Sensors	Accelerometer and digital compass

Power

M6-35R specifications — Power
Battery	1 × 18650
Maximum battery life	7 hours
USB interface	USB Type-C

Physical

M6-35R specifications — Physical
Dimensions	5.9 × 2.16 × 3.18 in
Weight	12.34 oz
Housing material	Magnesium alloy

Environmental

M6-35R specifications — Environmental
Protection rating	IP67
Operating temperature	−4°F to 122°F
Storage temperature	−40°F to 122°F

M6: a closer look inside

Unpack the carry case, device and accessories in this 55-second film.

Package contents shown reflect the filmed configuration. Check your selected product package for included items.
